Transmission of Data (IJG)

MS Managing Authority (MSMA)

Record Transmission of Data

Upload Transmission of Data Documents

Consult Transmission of Data

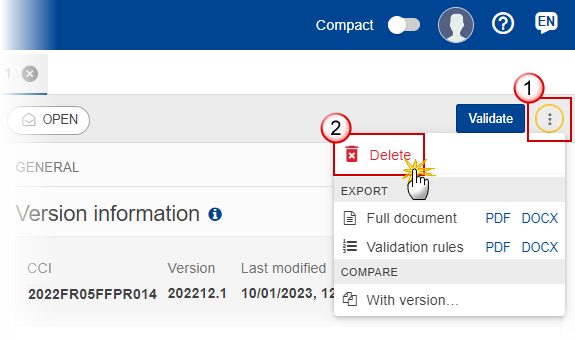

Delete Transmission of Data

Validate Transmission of Data

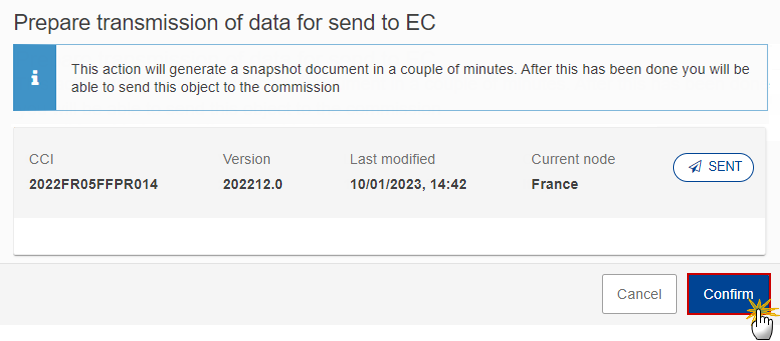

Prepare Transmission of Data for send to EC

Send Transmission of Data

Request by MS for a Review of Transmission of Data

Cancel Transmission of Data

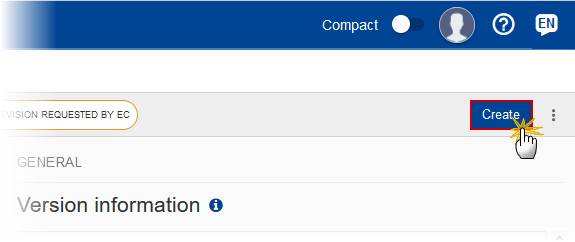

Create New Version of a Transmission of Data

MS Audit Authority (MSAA)

Consult Transmission of Data

ERDF

CF

ESF+

JTF

Remark

The User is an identified User and has the role of MS Managing Authority with Update rights (MSMAu).

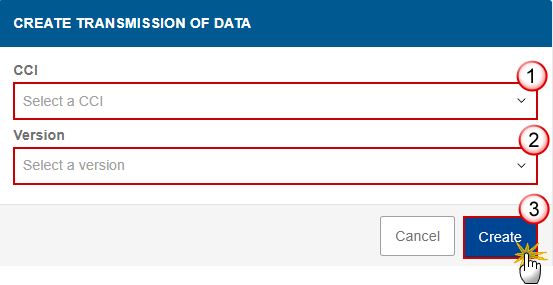

When creating a new Transmission of Data , it does not yet exist.

The Programme is managed on the User’s Node.

There is already an adopted Programme version at Commission level.

The version number is a concatenation of the Submission Year and of the month of the cut-off-date of the Transmission of Data Submission Period (ex. 202212). This version number is selected by the User at creation of the Transmission of Data. The work version number is automatically provided by the system and is 0. The following Submission Periods and related Version numbers exist, starting from 31/01/2022, but not before the first adoption date of the Programme, and ending on 31/01/2030:

• YYYY03 with cut-off-date 31/03 to be submitted by 30/04 of YYYY

• YYYY06 with cut-off-date 30/06 to be submitted by 31/07 of YYYY

• YYYY08 with cut-off-date 31/08 to be submitted by 30/09 of YYYY

• YYYY10 with cut-off-date 31/10 to be submitted by 30/11 of YYYY

• YYYY12 with cut-off-date 31/12 to be submitted by 31/01 of YYYY+1

The Source language is copied from the last version of the Programme at Commission level.

Remark

For IJG, the following tables foreseen in the official template (Annex VII) will be available in the different submission periods:

(1) Material Deprivation Common (EMCO) and Programme Specific Output Indicators not editable in that period

(2) Material Deprivation Common (EMCR) and Programme Specific Result Indicators not editable in that period

The following tables foreseen in the official template (Annex VII) will be available for the IJG module:

On Create, the initial Transmission of Data structure is created and a Table of Content (ToC)/Navigation Tree is presented, so the User can continue to populate the structured data of the Transmission of Data.

The Transmission of Data version is linked to the last adopted version of the Programme in force at the cut-off-date.

The records of Tables 1, 5, 6, 8, 9, 10 are automatically created and populated with the data of the linked Programme version.

The achievement values (non-programme data) are updated with achievement data from the previous submitted Transmission of Data version. See the different Table requirements for the Table specific logic.

The Tables 2 and 12 will be directly copied from the previous submitted Transmission of Data version. After copying, table 2 for Specific Objective ESO4.13 needs to be updated by setting the Intervention field to 164 (The only code allowed for material deprivation) and the values for Dimensions 2 to 8 should be nullified).

Remark

The User is an identified User and has the role of MS Managing Authority with Update rights (MSMAu).

When editing a version of a Transmission of Data , its status is Open, Validated, Ready to send or Sent at the level of the Member State or Review requested by MS and currently resides on the User's Node.

Note

The Version Information contains information on the identification and status of the Transmission of Data Version like the CCI, the Programme Title in English, the Version Number, the Status and the Node where it currently resides, and the Programme Version it is linked to.

This section is not editable.

Note

Officials in Charge can be updated at any time, independent from the status of the Transmission of Data .

Commission Officials (email domain "ec.europa.eu") can only be created/updated/deleted by Commission Users.

Note

The Documents list shows all documents uploaded against this version of the National Audit Report by Member State and by Commission. Member State Users see all their own Documents and the sent Commission Documents. Commission Users see all their own Documents, unsent Integral Member State Documents and sent Member State Documents.

Description

Internal Code

Non-Integral (1)

Integral (2)

System (3)

Required (4)

Other Member State Document

TOD.OM

X

Snapshot of data before send

SNP.TODSNT

X

X

X

Remark

Integral Documents (Official Proposal etc) are only sent - together with the encoded data – once the Transmission of Data is sent to the EC.

Referential/non-integral Documents (ie. 'Other Member State Document') can be sent at any time independently of the status of the Transmission of Data .

The 'Other Member State Document' type demands a manual submission (they are NOT sent automatically when the object is sent to the EC).

A non-integral document is only visible to the Commission when the SENT DATE is visible.

Remark

Integral document types will only display the Save button and will be sent when the Transmission of Data is sent to the Commission. Non-integral document types (such as ‘Other Member State Documents’) will display the Save button and a Save & Send button, and must be sent independently of the Transmission of Data .

Remark

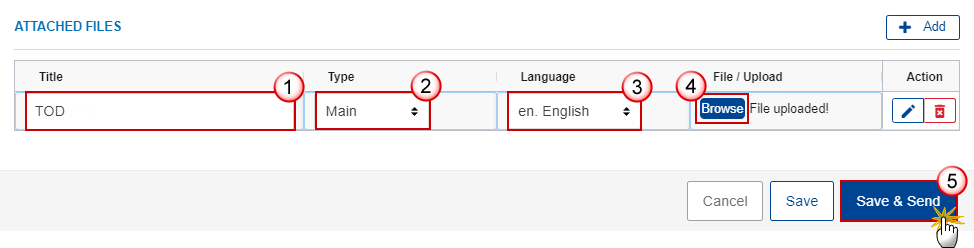

The Save & Send button will only be shown for documents which are not integral part of the Object and after at least one attachment was added.

Remark

Only unsent documents can be deleted.

Note

This section is used to provide any relevant information to the Transmission of Data . It can be used as a type of 'chat' between the Member State and Commission.

All Users who have Read permission on the Transmission of Data will be able to read all observations in the conversation.

All Users who have Update permission on the Transmission of Data will be able to send an observation and participate in the conversation.

All observations are kept against the specific version of the Transmission of Data .

The observation is added below the Observations box and includes the username, the date and time of the post.

Note

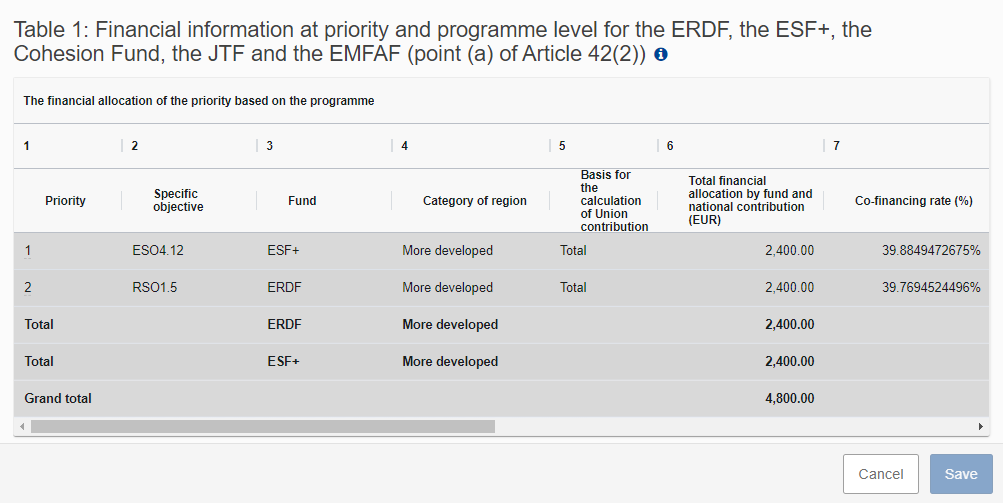

The records are automatically foreseen from the linked Programme version. There is a record for each distinct Priority (non-Technical Assistance and Technical Assistance), Specific Objective (only for non-Technical Assistance), Fund [and Category of Region] combination in Programme Table 4, plus a record for each Priority dedicated to Material Deprivation (ESO4.13) which doesn’t have a Table 4.

The “Category of region” column will only be shown for IJG Programmes containing ERDF or ESF+.

The JTF records do not have the detail per JTF Allocation Type.

The “Basis for calculation” will be the one defined against the Priority, Fund [and Category of Region], as it doesn’t exist at Specific Objective level.

The “Total financial allocation” in column 6 should always be without Technical Assistance.

The “Total financial allocation” in column 6 will be the Total amount per Priority, Specific Objective (only for non-Technical Assistance), Fund [and Category of Region] from Programme Table 4, divided by the following co-financing rate:

• For IJG Art.36(4) programmes, this co-financing rate will be the one defined against the Priority, Fund [and Category of Region] in Programme Table 11 Column (f). For JTF it will be the one at the level of the total JTF, so not per JTF Allocation Type.

• For IJG Art.36(5) programmes, this co-financing rate is calculated for the Priority, Fund [and Category of Region] in Programme Table 11 by formula ((b)+ ( i)) / (g), as it should only take into account Union contributions without TA. For JTF this calculation will be done at the level of the total JTF, so not per JTF Allocation Type.

For Material Deprivation (ESO4.13) which doesn’t have a Table 4, the “Total financial allocation” needs to come from Programme Table 11 where there is no Specific Objective, but the Priority is dedicated to only Material Deprivation (ESO4.13) anyway:

• For IJG Art.36(4) programmes, the “Total financial allocation” = Programme Table 11 (e).

• For IJG Art.36(5) programmes, the “Total financial allocation” = Programme Table 11 (b)+(i)+(d).

The “Co-financing rate” in column 7 will be the one defined against the Priority, Fund [and Category of Region] in Programme Table 11 (IJG) (Column (f) for TA 36(4) and (h) for TA 36(5)). For JTF it will be the one at the level of the total JTF, so not per JTF Allocation Type.

The “Proportion of the total financial allocation covered with selected operations (%)” is calculated ((column 8/column 6)*100) and is persisted.

The “Proportion of the total financial allocation covered by eligible expenditure declared by beneficiaries (%)” is calculated ((column 11/column 6)*100) and is persisted.

All editable fields are mandatory. This will not be checked in the form but in validation rule 125.

On save, the system will calculate and overwrite the achievement per gender and total for EECO01. Should be EECO02 + EECO04 + EECO05.

Remark

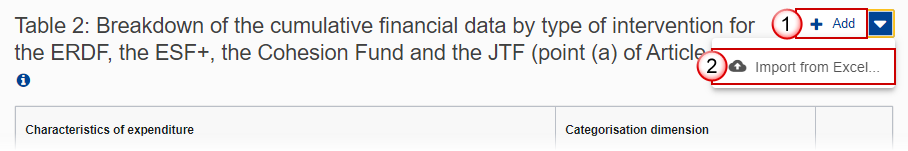

The data in Table 2 can be entered manually (1) or via the import of an Excel file (2). An Import button is foreseen to allow the import of Table 2 data from a correctly formatted Excel file template available here on our Portal.

The import will delete all existing records and add all records from the Excel. When not all records from the Excel file could be imported successfully, the following alert will be displayed “Not all records from the Excel file were imported because the format was not correct or because the codes do not exist”, followed by the list of none imported records.

Note

The “Category of region” column will only be shown for IJG Programmes containing ERDF or ESF+.

A subtotal per Fund and Category of Region and a grand total are foreseen on the 3 Financial data columns.

All fields are mandatory when applicable.

Note

The records for Programme Specific, Reserved and Common ERDF, CF and JTF Output Indicators are automatically foreseen from Table 2 of the linked Programme version, both for non-Technical Assistance and Technical Assistance Priorities. Additionally, when Common Output sub-Indicators (“of which”) have been defined for reporting, they will automatically be foreseen for the Indicators coming from Table 2. These Common Output sub-Indicators (“of which”) will not have a Milestone, nor a Target. Programme Specific and Reserved Indicators are always Main Indicators without sub-indicator.

Additionally, for JTF, all other Common ESF+ Output Indicators valid for the Specific Objective JSO8.1 and Fund JTF and not available in the Programme Table 2, will automatically be foreseen for each such Priority with Fund JTF and Specific Objective JSO8.1.

The “Category of region” column will only be shown for IJG Programmes containing ERDF.

For ERDF and CF, only columns 11, 12 and 13 are editable. Column 13 is always editable and optional.

For JTF, only columns 11, 12 and 13 are editable. Column 13 is always editable and optional.

Check this FAQ to see in what cases columns 11 and 12 are editable and to know what the formulas are used to calculate the values of “Implemented operations”.

Note

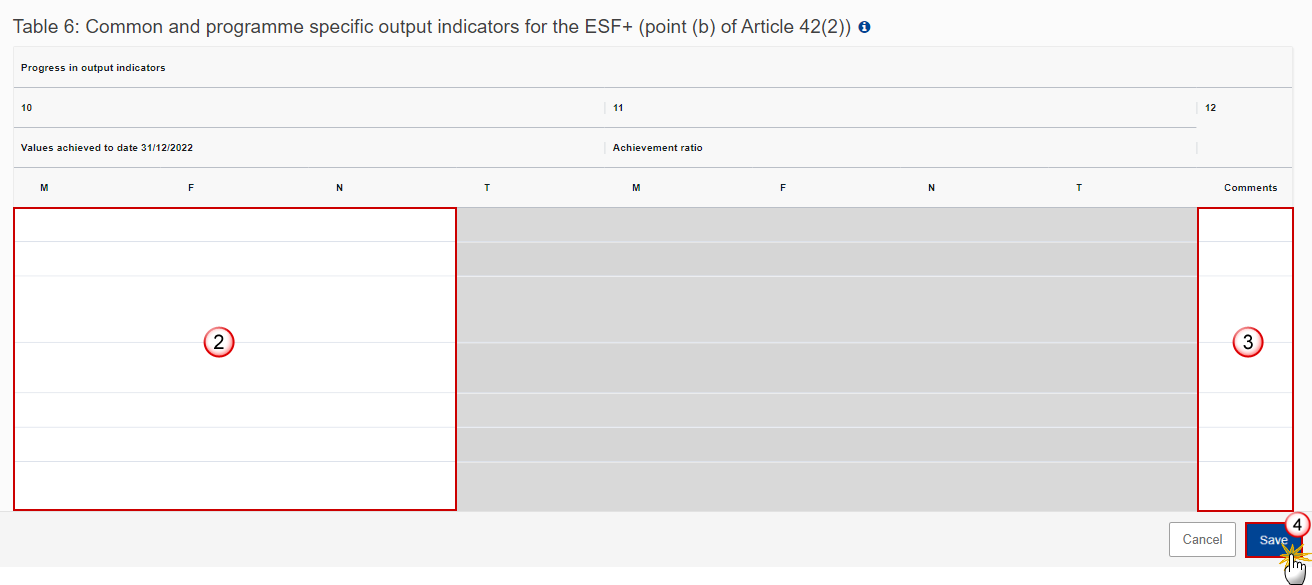

All records for Programme Specific, Reserved and Common ESF+ Output Indicators available in Table 2 of the linked Programme version are automatically foreseen. Additionally, all other Common ESF+ Output Indicators valid for the Specific Objective and Fund, for each Priority, Specific Objective, Fund and Category of Region, not available in the Programme Table 2 will be automatically foreseen.

Only columns 9 (when a total target already exists in the Programme), 10 and 12 are editable. Column 12 is always editable and optional.

Check this FAQ to see in what cases columns 9 and 10 and their gender breakdown are editable and mandatory/optional and to know what formulas are used to calculate the values.

The check on mandatory fields will not be done in the form but in validation rules 130 and 131.

Remark

The system assumes that for Output Indicators, the Target values and Achievement values are always in absolute numbers.

The Achievement ratio is always displayed as a nominal value, not as a percentage.

Note

All records are automatically foreseen.

Only columns 4 and 5 are editable under the sub-indicators (“of which”). Column 4 is mandatory, column 5 is optional.

The formula to calculate the value for column 4 of indicator RCO01 = RCO01a+RCO01b+RCO01c+RCO01d.

Note

The records are automatically foreseen from Table 3 of the linked Programme version. Additionally, when Common Result sub-Indicators (“of which”) have been defined for reporting, they will automatically be foreseen for the Indicators coming from Table 3. These Common Result sub-Indicators (“of which”) will not have a Baseline, nor a Target from the Programme.

Additionally, for JTF, all other Common ESF+ Result Indicators valid for the Specific Objective JSO8.1 and Fund JTF and not available in the Programme Table 3, will automatically be foreseen for each such Priority with Fund JTF and Specific Objective JSO8.1.

For ERDF and CF, only columns 11, 12, 13, 14 and 15 are editable. Column 15 is always editable and optional.

For JTF, only columns 11, 12, 13, 14 and 15 are editable. Column 15 is always editable and optional.

Check this FAQ to see in which cases columns 11, 12, 13 and 14 are editable and to know what formulas are used to calculate the values of “Implemented operations”.

The check on mandatory fields will not be done in the form but in validation rules 134 to 137.

Note

All records for Programme Specific, Reserved and Common ESF+ Result Indicators available in Table 3 of the linked Programme version are automatically foreseen. Additionally, all other Common ESF+ Result Indicators valid for the Specific Objective and Fund, for each Priority, Specific Objective, Fund and Category of Region and without Output Indicator for target setting, not available in the Programme Table 3 will be automatically foreseen. This means that in the end a Result Indicator with an Output Indicator for target setting defined in the Programme, will have two records in this Table 10, one with the Output Indicator as basis for target setting and one without the Output indicator as basis for target setting.

Only columns 10 (when a total target already exists in the Programme), 11 and 13 are editable. Column 13 is always editable and optional.

Check this FAQ to see in which cases columns 10 and 11 and their gender breakdown are editable and mandatory and to know what formulas are used to calculate the values.

The check on mandatory fields will not be done in the form but in validation rules 138 and 139.

Remark

Programme Specific Result Indicators can be qualitative. In that case the columns 10-T and 11-T will be alphanumeric instead of numeric.

For Quantitative Indicators under Specific Objectives ESO4.1 to ESO4.12, the “Measurement unit of indicator” and the “Measurement unit of target” will also contain between round brackets the “Term” defined against the indicator in the Programme.

The Achievement ratio is always displayed as a nominal value, not as a percentage.

When the Indicator has a decreasing target, then the Achievement ratio needs to be inverted (= 1 / Achievement ratio).

In the Print, the “Decreasing target” will not be shown.

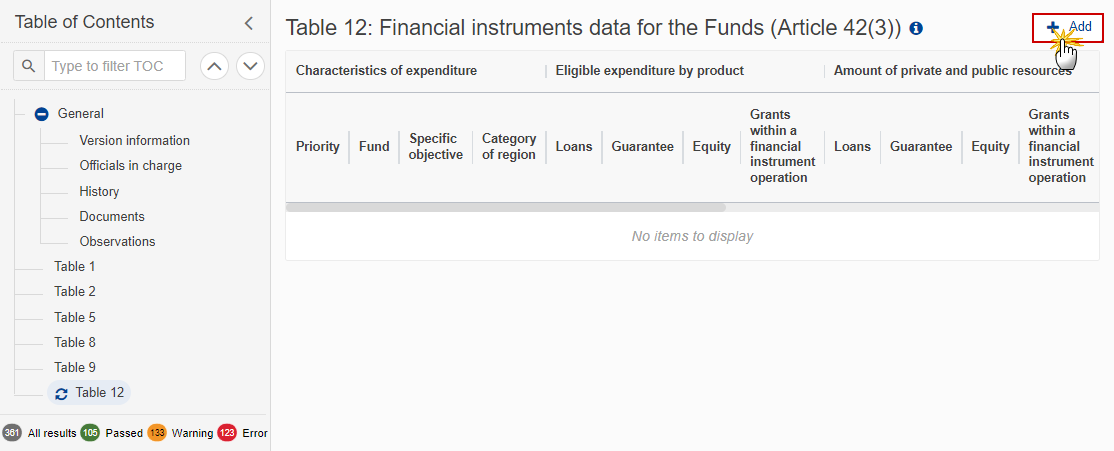

Note

The “Category of region” column will only be shown for IJG Programmes containing ERDF or ESF+.

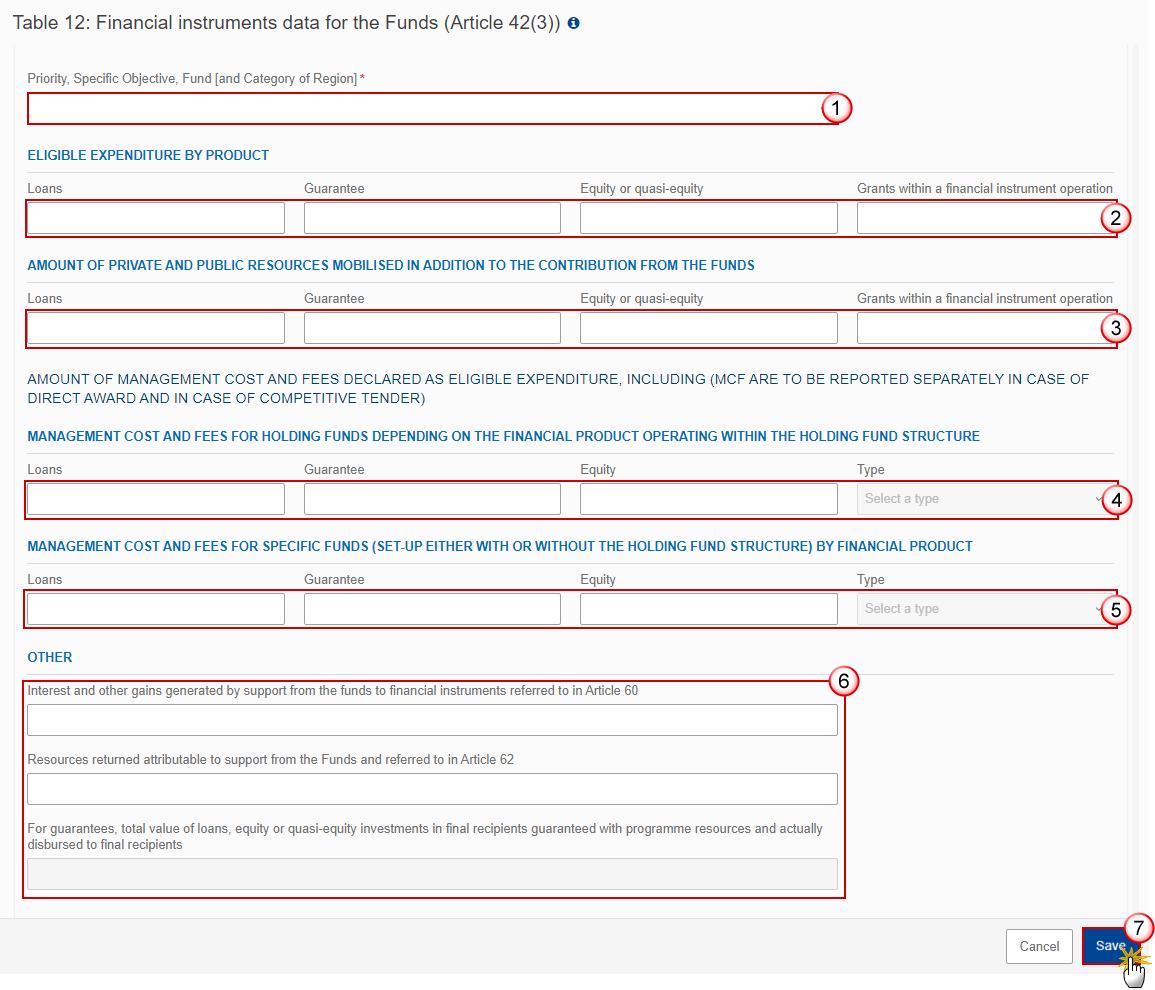

Per record, only one Product + Grants can be encoded. Therefore, from the moment the Eligible expenditure for one Product is encoded, all the fields of the other Products (Loans, Guarantees, Equity) are nullified and disabled. And from the moment the Eligible expenditure of one Product is nullified, the values in the other fields of the Product are also nullified and all fields are enabled. Grants are always enabled.

Encode multiple records for the same ‘Priority, Fund , Specific Objective, Category of region, Product’ is allowed.

Remark

The Transmission of Data can be validated at any time, when the current version is in status Open and resides at the User’s Node.

To validate the Transmission of Data , the User must have the role of MS Managing Authority with Update or Send rights (MSMAu/s).

Remark

An Error will block you from sending the Transmission of Data . The error(s) should be resolved and the Transmission of Data must be revalidated. Note that a Warning does not block you from sending the Transmission of Data .

Code

Severity

Validation Rule

001

Warning

Validate that at least one official in charge of the Member State exists.

002

Error

Validate that the CCI code matches the following regular expression:

• For IJG

(……16..PR…|……16..TA…| ……05..PR…|……05..TA…)

• For ETC

(….TC16….…)

• For EMFAF

(……14MFPR…)

• For AMIF, ISF and BMVI

(……65AMPR…|……65ISPR…|……65BVPR…) (Implicit in web).

003

Error

Validate that the programme is already adopted by the Commission (Implicit in web).

004

Warning

Validate when Transmission of Data work version is 0, that the current date

• for submission period YYYY12 is smaller or equal than 31/01/YYYY+1,

• for submission period YYYY03 is smaller or equal than 30/04/YYYY,

• for submission period YYYY06 is smaller or equal than 31/07/YYYY,

• for submission period YYYY08 is smaller or equal than 30/09/YYYY,

• for submission period YYYY09 is smaller or equal than 31/10/YYYY,

• for submission period YYYY10 is smaller or equal than 30/11/YYYY.

005

Warning

Validate when submission period is YYYY06 or YYYY12 for IJG and ETC programmes in table 12 that eligible expenditure by product is provided (positive, zero, but not null) for financial instruments corresponding to a form of support defined in table 2 (02 = equity or quasi-equity, 03 = Loans, 04 = guarantees, 05 = grants within an FI operation) for the same priority, specific objective, fund, [category of region].

006

Error

Validate when submission period is YYYY06 or YYYY12 for IJG and ETC programmes in table 12 that no eligible expenditure by product is provided for financial instruments not corresponding to a form of support defined in table 2 (02 = equity or quasi-equity, 03 = Loans, 04 = guarantees, 05 = grants within an FI operation) for the same priority, specific objective, fund, [category of region].

007

Warning

Validate when submission period is YYYY06 or YYYY12 in table 2 that the total eligible expenditure declared by beneficiaries per priority, specific objective, Fund, category of region and form of support (only 02, 03, 04 and 05) is within +/- 20% range of the sum of the corresponding eligible expenditure + eligible MCFs in table 12.

008

Warning

Validate when submission period is YYYY06 or YYYY12 in table 12 when it contains eligible expenditure for grants within a FI operation (at line level), that it also contains eligible expenditure for either equity or quasi-equity or loans or guarantees.

009

Warning

Validate when submission period is YYYY06 or YYYY12 in table 11 that baseline is 0 for main indicators.

012

Error

Validate in table 2 that for each form of support row, the total eligible cost of selected operations and the total eligible expenditure declared by beneficiaries is positive, zero, but not null.

013

Warning

Validate in table 1 when “Total eligible costs of selected operations” is > 0 and having a category of region that “Number of selected operations” is > 0.

014

Warning

Validate in table 1 when “Number of selected operations” is > 0 that “Total eligible costs of selected operations” is > 0.

015

Warning

Validate in table 2 when “Total eligible costs of selected operations” is > 0 and having a category of region that “Number of selected operations” is > 0.

016

Error

Validate in table 2 when “Total eligible costs of selected operations” is > 0 that “Number of selected operations” is > 0.

017

Warning

Validate in table 1 when “Total eligible expenditure declared by beneficiaries” is > 0 that “Total eligible costs of selected operations” is >= “Total eligible expenditure declared by beneficiaries”.

018

Warning

Validate in table 2 when “Total eligible expenditure declared by beneficiaries” is > 0 that “Total eligible costs of selected operations” is >= “Total eligible expenditure declared by beneficiaries”.

019

Error

Validate when submission period is YYYY06 or YYYY12 in table 6 per priority, specific objective, category of region and gender that the value achieved for EECO02 is >= EECO03.

020

Error

Validate when submission period is YYYY06 or YYYY12 in table 6 per priority, specific objective, category of region and gender that the value achieved for EECO06+EECO07+EECO08 is <= EECO01.

021

Error

Validate when submission period is YYYY06 or YYYY12 in table 6 per priority, specific objective, category of region and gender that the value achieved for EECO09+EECO10+EECO11 is = EECO01.

022

Error

Validate when submission period is YYYY06 or YYYY12 in table 6 per priority, specific objective, category of region and gender that the value achieved for EECO12 is <= EECO01.

023

Error

Validate when submission period is YYYY06 or YYYY12 in table 6 per priority, specific objective, category of region and gender that the value achieved for EECO13 is <= EECO01.

024

Error

Validate when submission period is YYYY06 or YYYY12 in table 6 per priority, specific objective, category of region and gender that the value achieved for EECO14 is <= EECO01.

025

Error

Validate when submission period is YYYY06 or YYYY12 in table 6 per priority, specific objective, category of region and gender that the value achieved for EECO15 is <= EECO01.

026

Error

Validate when submission period is YYYY06 or YYYY12 in table 6 per priority, specific objective, category of region and gender that the value achieved for EECO16 is <= EECO01.

027

Error

Validate when submission period is YYYY06 or YYYY12 in table 6 per priority, specific objective, category of region and gender that the value achieved for EECO17 is <= EECO01.

028

Error

Validate when submission period is YYYY06 or YYYY12 in table 6 per priority, specific objective and category of region, when gender breakdown has been encoded (different from 0), that for programme specific indicators and reserved indicators, the total achieved value equals the sum of male, female and non-binary achieved values.

029

Error

Validate when submission period is YYYY06 or YYYY12 in table 6 per priority, specific objective, category of region and gender that the value achieved for ESCO02 is <= ESCO01.

030

Error

Validate when submission period is YYYY06 or YYYY12 in table 6 per priority, specific objective, category of region and gender that the value achieved for ESCO03 is <= ESCO01.

031

Error

Validate when submission period is YYYY06 or YYYY12 in table 6 per priority, specific objective, category of region and gender that the value achieved for ESCO04 is <= ESCO01.

032

Error

Validate when submission period is YYYY06 or YYYY12 in table 6 per priority, specific objective, category of region and gender that the value achieved for ESCO05 is <= ESCO01.

033

Error

Validate when submission period is YYYY06 or YYYY12 in table 6 per priority, specific objective, category of region and gender that the value achieved for ESCO06 is <= ESCO01.

034

Error

Validate when submission period is YYYY06 or YYYY12 in table 6 per priority, specific objective, category of region and gender that the value achieved for ESCO07 is <= ESCO01.

035

Error

Validate when submission period is YYYY06 or YYYY12 in table 6 per priority, specific objective, category of region and gender that the value achieved for ESCO08 is <= ESCO01.

036

Error

Validate when submission period is YYYY06 or YYYY12 in table 6 per priority, specific objective, category of region and gender that the value achieved for ESCO02+ESCO03+ESCO04 is <= ESCO01.

037

Error

Validate when submission period is YYYY06 or YYYY12 in table 6 per priority, specific objective and category of region that the total value achieved for EMCO01 is >= EMCO02+EMCO05.

038

Error

Validate when submission period is YYYY06 or YYYY12 in table 6 per priority, specific objective and category of region that the total value achieved for EMCO02 is = EMCO03+EMCO04.

039

Error

Validate when submission period is YYYY06 or YYYY12 in table 6 per priority, specific objective and category of region that the total value achieved for EMCO03 is <= EMCO02.

040

Error

Validate when submission period is YYYY06 or YYYY12 in table 6 per priority, specific objective and category of region that the total value achieved for EMCO04 is <= EMCO02.

041

Error

Validate when submission period is YYYY06 or YYYY12 in table 6 per priority, specific objective and category of region that the total value achieved for EMCO05 is = EMCO06+EMCO07+EMCO08.

042

Error

Validate when submission period is YYYY06 or YYYY12 in table 6 per priority, specific objective and category of region that the total value achieved for EMCO06 is <= EMCO05.

043

Error

Validate when submission period is YYYY06 or YYYY12 in table 6 per priority, specific objective and category of region that the total value achieved for EMCO07 is <= EMCO05.

044

Error

Validate when submission period is YYYY06 or YYYY12 in table 6 per priority, specific objective and category of region that the total value achieved for EMCO08 is <= EMCO05.

045

Error

Validate when submission period is YYYY06 or YYYY12 in table 6 per priority, specific objective and category of region that the total value achieved for EMCO10 is <= 100%.

046

Error

Validate when submission period is YYYY06 or YYYY12 in table 6 per priority, specific objective and category of region that the total value achieved for EMCO11 is <= 100%.

047

Error

Validate when submission period is YYYY06 or YYYY12 in table 10 per priority, specific objective, category of region and gender that the value achieved for EECR01 not linked to a target is <= EECO04 in table 6.

048

Error

Validate when submission period is YYYY06 or YYYY12 in table 10 per priority, specific objective, category of region and gender that the value achieved for EECR02 not linked to a target is <= EECO01 in table 6.

049

Error

Validate when submission period is YYYY06 or YYYY12 in table 10 per priority, specific objective, category of region and gender that the value achieved for EECR03 not linked to a target is <= EECO01 in table 6.

050

Error

Validate when submission period is YYYY06 or YYYY12 in table 10 per priority, specific objective, category of region and gender that the value achieved for EECR04 not linked to a target is <= EECO02+EECO04 in table 6.

051

Error

Validate when submission period is YYYY06 or YYYY12 in table 10 per priority, specific objective, category of region and gender that the value achieved for EECR05 not linked to a target is <= EECO02+EECO04 in table 6.

052

Error

Validate when submission period is YYYY06 or YYYY12 in table 10 per priority, specific objective, category of region and gender that the value achieved for EECR06 not linked to a target is <= EECO05 in table 6.

053

Error

Validate when submission period is YYYY06 or YYYY12 in table 10 per priority, specific objective, category of region and gender that the value achieved for the result indicator is <= value achieved for the reference output indicator in table 6.

054

Error

Validate when submission period is YYYY06 or YYYY12 in table 10 per priority, specific objective and category of region, when gender breakdown has been encoded (different from 0), that for programme specific indicators and reserved indicators, with a term of the indicator’s measurement unit equal to ‘number’, the total achieved value equals the sum of male, female and non-binary achieved values.

055

Error

Validate when submission period is YYYY06 or YYYY12 in table 10 per priority, specific objective, category of region and gender that the value achieved for EECR01, EECR02, EECR03, EECR04, EECR05 and EECR06 without a target is >= than the value achieved for EECR01, EECR02, EECR03, EECR04, EECR05 and EECR06 with a target.

056

Error

Validate when submission period is YYYY06 or YYYY12 in table 10 per priority, specific objective and category of region that the total value achieved for EMCR01 is >= EMCR02+EMCR03+EMCR05.

057

Error

Validate when submission period is YYYY06 or YYYY12 in table 10 per priority, specific objective and category of region that the total value achieved for EMCR02 is <= EMCR01.

058

Error

Validate when submission period is YYYY06 or YYYY12 in table 10 per priority, specific objective and category of region that the total value achieved for EMCR03 is <= EMCR01.

059

Error

Validate when submission period is YYYY06 or YYYY12 in table 10 per priority, specific objective and category of region that the total value achieved for EMCR05 is <= EMCR01.

060

Error

Validate when submission period is YYYY06 or YYYY12 in table 10 per priority, specific objective and category of region that the total value achieved for EMCR06 is <= EMCR01.

061

Error

Validate when submission period is YYYY06 or YYYY12 in table 10 per priority, specific objective and category of region that the total value achieved for EMCR07 is <= EMCR01.

062

Error

Validate when submission period is YYYY06 or YYYY12 in table 10 per priority, specific objective and category of region that the total value achieved for EMCR08 is <= EMCR01.

063

Error

Validate when submission period is YYYY06 or YYYY12 in table 10 per priority, specific objective and category of region that the total value achieved for EMCR09 is <= EMCR01.

064

Error

Validate when submission period is YYYY06 or YYYY12 in table 10 per priority, specific objective and category of region that the total value achieved for EMCR10 is >= EMCR11+EMCR12+EMCR14.

065

Error

Validate when submission period is YYYY06 or YYYY12 in table 10 per priority, specific objective and category of region that the total value achieved for EMCR11 is <= EMCR10.

066

Error

Validate when submission period is YYYY06 or YYYY12 in table 10 per priority, specific objective and category of region that the total value achieved for EMCR12 is <= EMCR10.

067

Error

Validate when submission period is YYYY06 or YYYY12 in table 10 per priority, specific objective and category of region that the total value achieved for EMCR14 is <= EMCR10.

068

Error

Validate when submission period is YYYY06 or YYYY12 in table 10 per priority, specific objective and category of region that the total value achieved for EMCR15 is <= EMCR10.

069

Error

Validate when submission period is YYYY06 or YYYY12 in table 10 per priority, specific objective and category of region that the total value achieved for EMCR16 is <= EMCR10.

070

Error

Validate when submission period is YYYY06 or YYYY12 in table 10 per priority, specific objective and category of region that the total value achieved for EMCR17 is <= EMCR10.

071

Error

Validate when submission period is YYYY06 or YYYY12 in table 10 per priority, specific objective and category of region that the total value achieved for EMCR18 is <= EMCR10.

072

Error

Validate when submission period is YYYY06 or YYYY12 in table 10 per priority, specific objective and category of region that the total value achieved for EMCR19 is >= EMCR20+EMCR21+EMCR22.

073

Error

Validate when submission period is YYYY06 or YYYY12 in table 10 per priority, specific objective and category of region that the total value achieved for EMCR20 is <= EMCR19.

074

Error

Validate when submission period is YYYY06 or YYYY12 in table 10 per priority, specific objective and category of region that the total value achieved for EMCR21 is <= EMCR19.

075

Error

Validate when submission period is YYYY06 or YYYY12 in table 10 per priority, specific objective and category of region that the total value achieved for EMCR22 is <= EMCR19.

076

Error

Validate when submission period is YYYY06 or YYYY12 in table 10 per priority, specific objective and category of region that the total value achieved for EMCR24 is <= EMCR19.

077

Error

Validate when submission period is YYYY06 or YYYY12 in table 10 per priority, specific objective and category of region that the total value achieved for EMCR25 is <= EMCR19.

078

Error

Validate when submission period is YYYY06 or YYYY12 in table 10 per priority, specific objective and category of region that the total value achieved for EMCR26 is <= EMCR19.

079

Error

Validate when submission period is YYYY06 or YYYY12 in table 10 per priority, specific objective and category of region that the total value achieved for EMCR27 is <= EMCR19.

080

Error

Validate in table 1 for non-ESF+ that “Total eligible cost of selected operations (EUR)” per Fund and category of region is equal to the total eligible cost of selected operations per Fund and category of region from table 2

081

Warning

Validate in table 1 that “Contribution from the funds to selected operations (EUR)” is <= than “Total eligible cost of selected operations (EUR)”.

082

Warning

Validate in table 1 that “Total eligible cost of selected operations (EUR)” is <= than “Total financial allocation by fund and national contribution (EUR)”.

083

Error

Validate in table 1 that no negative value is encoded for “Number of selected operations”.

084

Error

Validate in table 2 that no negative value is encoded for “Number of selected operations”

085

Warning

Validate when submission period is YYYY06 or YYYY12 in table 5 for non-JTF ESF+ common indicators, that “Selected operations [dd/mm/yy]” are <= than “Target 2029”.

086

Warning

Validate when submission period is YYYY06 or YYYY12 in table 9 for non-JTF ESF+ common indicators, that “Planned achievements” of “Selected operations [dd/mm/yy]” are <= than “Target 2029”.

087

Warning

Validate when submission period is YYYY06 or YYYY12 in table 5 that “Implemented operations [dd/mm/yy]” are <= than “Target 2029”.

088

Warning

Validate when submission period is YYYY06 or YYYY12 in table 9 that “Achieved” of “Implemented operations [dd/mm/yy]” are <= than “Target 2029”.

089

Error

Validate when submission period is YYYY06 or YYYY12 in table 5 that no negative value is encoded for “Selected operations” and “Implemented operations”.

090

Error

Validate when submission period is YYYY06 or YYYY12 in table 8 that no negative value is encoded for “Number of enterprises”.

091

Error

Validate in table 2 for non-ESO4.13 specific objective that the intervention field encoded for ESF+, ERDF, CF and JTF exists also within the table 4 of the programme nevertheless of priority, Fund or specific objective.

092

Error

Validate in table 1 that the “Total eligible expenditure declared by beneficiaries” per Fund and category of region is equal to the “Total eligible expenditure declared by beneficiaries” per Fund and category of region from table 2.

093

Warning

Validate in table 1 that the “Total eligible expenditure declared by beneficiaries” is <= than the “Total financial allocation by Fund and national contribution”.

094

Warning

Validate when submission period is YYYY06 or YYYY12 in table 5 for non-JTF ESF+ common indicators, that “Selected operations [dd/mm/yy]” are >= than “Implemented operations [dd/mm/yy]”.

095

Warning

Validate when submission period is YYYY06 or YYYY12 in table 9 for non-JTF ESF+ common indicators, that “Achieved” of “Implemented operations [dd/mm/yy]” is <= than “Planned achievements” of “Selected operations [dd/mm/yy]”.

096

Warning

Validate when submission period is YYYY06 or YYYY12 in table 9 for non-JTF ESF+ common indicators, that “Baseline” of “Implemented operations [dd/mm/yy]” is <= than “Baseline” of “Selected operations [dd/mm/yy]”.

097

Error

Validate in when submission period is YYYY06 or YYYY12 table 6 per priority, specific objective, category of region and gender that the value achieved for EECO01= EECO02 + EECO04 + EECO05.

098

Error

Validate in table 3 for AMIF and BMVI that the type of intervention encoded in column 3 exists also within the table 3 of the related programme and specific objective.

099

Error

Validate in table 3 for ISF that the type of intervention encoded in column 4 exists also within the table 3 of the related programme and specific objective.

100

Error

Validate in table 3 that the code for the “Type of intervention (Table 3 of Annex VI)” in column 5 corresponds to the type of action of the “Co-financing rate (%)” in column 2.

101

Warning

Validate in Table 3 that row Total per Specific Objective for “Total eligible cost of selected operations” (column 8), “Contribution from the funds to selected operations” (column 9) and “Total eligible expenditure declared by beneficiaries” (column 11) are always <= than “Total financial allocation from the fund and national contribution” (column 7).

102

Error

Validate in table 3 that for each row, the “Total eligible cost of selected operations” (column 8) and the “Total eligible expenditure declared by beneficiaries” (column 11) is positive, zero, but not null.

103

Error

Validate in table 3 when “Total eligible costs of selected operations” (column 8) is > 0 that “Number of selected operations” (column 13) is > 0.

104

Error

Validate in table 3 when “Number of selected operations” (column 13) is > 0 that “Total eligible costs of selected operations” (column 8) is > 0.

105

Error

Validate in table 3 that the “Contribution from the funds to selected operations (EUR)” (column 9) is <= than “Total eligible cost of selected operations (EUR)” (column 8).

106

Warning

Validate in table 3 that “Total eligible cost of selected operations (EUR)” (column 8) is <= than “Total financial allocation from the Fund and national contribution (EUR)” (column 7).

107

Warning

Validate in table 3 that the “Total eligible expenditure declared by beneficiaries” (column 11) is <= than the “Total financial allocation from the Fund and national contribution (EUR)” (column 7).

108

Warning

Validate in table 3 when “Total eligible expenditure declared by beneficiaries” (column 11) is > 0 that “Total eligible costs of selected operations” (column 8) is >= “Total eligible expenditure declared by beneficiaries” (column 11).

109

Error

Validate in table 3 that no negative value is encoded for “Number of selected operations” (column 13).

110

Error

Validate when submission period is YYYY06 or YYYY12 in table 6 under non-material deprivation (non ESO4.13), for programme specific indicators, reserved indicators and common indicators requiring gender breakdown (CommonIndicatorEsf.genderBreakdown=true), and used in the programme, and having a gender target different from 0, that the sum of the gender targets equals the total target.

111

Error

Validate when submission period is YYYY06 or YYYY12 in table 10 under non-material deprivation (non ESO4.13), for quantitative programme specific indicators, reserved indicators and common indicators requiring gender breakdown (CommonIndicatorEsf.genderBreakdown=true), and used in the programme, and having a gender target different from 0, that the sum of the gender targets equals the total target.

112

Error

Validate in table 1 that the “Total eligible expenditure declared by beneficiaries” per priority and specific objective  is equal to the “Total eligible expenditure declared by beneficiaries” per priority and specific objective from table 4.

113

Error

Validate when submission period is YYYY06 or YYYY12 in table 12 when “For guarantees, total value of loans, equity or quasi-equity investments in final recipients guaranteed with programme resources and actually disbursed to final recipients” is > 0, that the eligible expenditure for guarantee is > 0.

114

Warning

Validate when submission period is YYYY06 or YYYY12 in table 12 when grants are selected for ‘Eligible expenditure by product”, that the amount declared for grants is <= than the amount declared for the financial product loans or equities.

115

Error

Validate when submission period is YYYY06 or YYYY12 in table 12 when a product value exists for management costs and fees for holding funds, that a type (D=Direct award or C=Competitive tender) is selected.

116

Error

Validate when submission period is YYYY06 or YYYY12 in table 12 when a product value exists for management costs and fees for specific funds, that a type (D=Direct award or C=Competitive tender) is selected.

123

Error

Validate when submission period is YYYY06 or YYYY12 in table 5 for JTF ESF+ common indicators for participants (EECO01-11) that no value has been encoded for selected operations (Implicit in web).

124

Error

Validate when submission period is YYYY06 or YYYY12 in table 9 for JTF ESF+ common indicators for participants (EECR01-04) that no value has been encoded for selected operations and for the baseline for implemented operations (Implicit in web).

125

Error

Validate in table 1 that per row columns 8, 9, 11 and 13 have each a value.

126

Error

Validate when submission period is YYYY06 or YYYY12 in table 5 that column “Selected operations” (11) has a value for

• ERDF, CF and EMFAF main indicators without sub-indicator (“of which”),

• ERDF, CF and EMFAF main indicators with sub-indicator (“of which”) and without formula,

• ERDF, CF and EMFAF main indicators with sub-indicator (“of which”) and with formula,

• JTF main OERDFCF indicators without sub-indicator (“of which”),

• JTF main OERDFCF indicators with sub-indicator (“of which”) and without formula,

• JTF main OERDFCF indicators with sub-indicator (“of which”) and with formula.

127

Error

Validate when submission period is YYYY06 or YYYY12 in table 5 having no JTF that column “Implemented operations” (12) has a value for

• Main indicators without sub-indicator (“of which”),

• Main indicators with sub-indicator (“of which”) and without formula,

• Sub-indicators (“of which”).

128

Error

Validate when submission period is YYYY06 or YYYY12 in table 5 having JTF that column “Implemented operations T” (12) has a value for

• Main ERDF/CF indicators without sub-indicator (“of which”),

• Main ERDF/CF indicators with sub-indicator (“of which”) and without formula,

• ERDF/CF sub-indicators (“of which”).

129

Error

Validate when submission period is YYYY06 or YYYY12 in table 5 having JTF that column “Implemented operations” (12) has a value per gender for ESF+ indicators.

130

Error

Validate when submission period is YYYY06 or YYYY12 in table 6 that column “Values achieved” (10) has a value per gender for common indicators requiring gender breakdown (CommonIndicatorEsf.genderBreakdown = true).

131

Error

Validate when submission period is YYYY06 or YYYY12 in table 6 that column “Values achieved T” (10) has a value for

• Non-material deprivation programme specific and reserved indicators,

• Non-material deprivation Common indicators not requiring gender breakdown (CommonIndicatorEsf.genderBreakdown = false),

• Material deprivation indicators (only for submission period YYYY12).

132

Error

Validate when submission period is YYYY06 or YYYY12 in table 7 that column “Values achieved” (9) has a value for

• Main indicator without sub-indicator (“of which”) and without formula,

• Main indicator with sub-indicator (“of which”) and without formula,

• Main indicator with sub-indicator (“of which”), with formula and optional breakdown having no achieved value (null) in all sub-indicators,

• Sub-indicator (“of which”) without formula and with mandatory breakdown,

• Sub-indicator (“of which”) without formula, with optional breakdown and sub-indicator achieved value not null.

133

Error

Validate when submission period is YYYY06 or YYYY12 in table 8 that column “Number of enterprises net of multiple support by …” (4) has a value.

134

Error

Validate when submission period is YYYY06 or YYYY12 in table 9 that columns “Selected operations - Baseline” (11) and “Selected operations - Planned achievements” (12) have a value for

• ERDF, CF and EMFAF main indicators without sub-indicator (“of which”),

• ERDF, CF and EMFAF main indicators with sub-indicator (“of which”) and without formula,

• ERDF, CF and EMFAF main indicators with sub-indicator (“of which”) and with formula,

• JTF main RERDFCF indicators without sub-indicator (“of which”),

• JTF main RERDFCF indicators with sub-indicator (“of which”) and without formula,

• JTF main RERDFCF indicators with sub-indicator (“of which”) and with formula.

135

Error

Validate when submission period is YYYY06 or YYYY12 in table 9 having no JTF that columns “Implemented operations - Baseline” (13) and “Implemented operations - Achieved” (14) have a value for

• Main indicators without sub-indicator (“of which”),

• Main indicators with sub-indicator (“of which”) and without formula,

• Sub-indicators (“of which”).

136

Error

Validate when submission period is YYYY06 or YYYY12 in table 9 having JTF that columns “Implemented operations - Baseline” (13) and “Implemented operations – Achieved T” (14) have a value for

• Main ERDF/CF indicators without sub-indicator (“of which”),

• Main ERDF/CF indicators with sub-indicator (“of which”) and without formula,

• ERDF/CF sub-indicators (“of which”).

137

Error

Validate when submission period is YYYY06 or YYYY12 in table 9 having JTF that column “Implemented operations” (14) has a value per gender for ESF+ indicators.

138

Error

Validate when submission period is YYYY06 or YYYY12 in table 10 that column “Values achieved” (11) has a value per gender for common indicators requiring gender breakdown (CommonIndicatorEsf.genderBreakdown = true).

139

Error

Validate when submission period is YYYY06 or YYYY12 in table 10 that column “Values achieved T” (11) has a value for

• Non-material deprivation programme specific and reserved indicators,

• Non-material deprivation Common indicators not requiring gender breakdown (CommonIndicatorEsf.genderBreakdown = false),

• Material deprivation indicators (only for submission period YYYY12).

140

Error

Validate when submission period is YYYY06 or YYYY12 in table 11 that column “Values achieved” (10) has a value for

• Main indicator without sub-indicator (“of which”) and without formula,

• Main indicator with sub-indicator (“of which”) and without formula,

• Main indicator with sub-indicator (“of which”), with formula and optional breakdown having no achieved value (null) in all sub-indicators,

• Sub-indicator (“of which”) without formula and with mandatory breakdown,

• Sub-indicator (“of which”) without formula, with optional breakdown and sub-indicator achieved value not null.

141

Warning

Validate when submission period is YYYY06 or YYYY12 in table 12 when financial product is guarantees and grants are selected for ‘Eligible expenditure by product”,  that the amount declared for grants <= than the amount for “for guarantees, total value of loans, equity or quasi-equity investments in final recipients guaranteed with programme resources and actually disbursed to final recipients”.

142

Error

Validate in table 2 that at least one record exists for each Priority/Fund/Specific Objective/Category of Region combination of table 1 with total eligible costs of selected operations > 0.

143

Error

Validate when submission period is YYYY06 or YYYY12 in table 12 that ‘Eligible expenditure by product’ contains only one Product (‘Loan’, ‘Guarantee’ or ‘Equity or quasi-equity’) per each record.

144

Error

Validate when submission period is YYYY06 or YYYY12 in table 6 per priority, specific objective, category of region and gender for reserved indicator EECO02+04 that the achieved value equals the sum of the achieved values of the composing common output indicators EECO02 and EECO04.

145

Error

Validate when submission period is YYYY06 or YYYY12 in table 6 per priority, specific objective, category of region and gender for reserved indicator EECO02+05 that the achieved value equals the sum of the achieved values of the composing common output indicators EECO02 and EECO05.

146

Error

Validate when submission period is YYYY06 or YYYY12 in table 6 per priority, specific objective, category of region and gender for reserved indicator EECO02+04+05 that the achieved value equals the sum of the achieved values of the composing common output indicators EECO02, EECO04 and EECO05.

147

Error

Validate when submission period is YYYY06 or YYYY12 in table 6 per priority, specific objective, category of region and gender for reserved indicator EECO06+07 that the achieved value equals the sum of the achieved values of the composing common output indicators EECO06 and EECO07.

148

Error

Validate when submission period is YYYY06 or YYYY12 in table 6 per priority, specific objective, category of region and gender for reserved indicator EECO09+10 that the achieved value equals the sum of the achieved values of the composing common output indicators EECO09 and EECO10.

149

Error

Validate when submission period is YYYY06 or YYYY12 in table 6 per priority, specific objective, category of region and gender for reserved indicator EECO10+11 that the achieved value equals the sum of the achieved values of the composing common output indicators EECO10 and EECO11.

150

Error

Validate when submission period is YYYY06 or YYYY12 in table 6 per priority, specific objective, category of region and gender for reserved indicator EECO09+10+11 that the achieved value equals the sum of the achieved values of the composing common output indicators EECO09, EECO10 and EECO11.

151

Error

Validate when submission period is YYYY06 or YYYY12 in table 6 per priority, specific objective, category of region and gender for reserved indicator EECO03+04 that the achieved value equals the sum of the achieved values of the composing common output indicators EECO03 and EECO04.

152

Error

Validate in table 1 when “Total eligible costs of selected operations” is > 0 and not having a category of region that “Number of selected operations” is > 0.

153

Error

Validate in table 2 when “Total eligible costs of selected operations” is > 0 and not having a category of region that “Number of selected operations” is > 0.

154

Error

Validate in table 2 when specific objective is ESO4.13 that the intervention field code is 164 and that all other categorisation dimensions are null.

Remark

The Prepare for Send can occur when a User on the highest MS Node wants to indicate that the Transmission of Data version can be prepared for sending to the Commission, once the Validation Errors have been removed and the status is Validated or Sent (from a lower Node).

To prepare the send of the Transmission of Data , the User must have the role of of Member State Managing Authority with Update or Send rights (MSMAu/s) for the funds managed by the Programme.

Remark

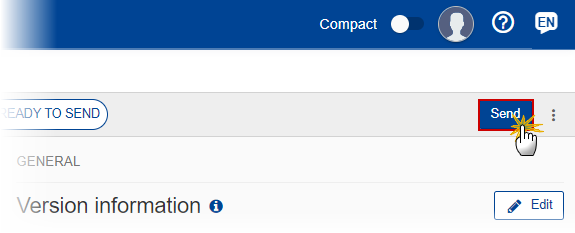

The Send can occur when a User wants to send its recorded data on a Transmission of Data version to the Commission or to an upper Node.

The Transmission of Data can only be sent once the Validation Errors have been removed and the status is Ready To Send or Sent (from a lower node).

The "4 eye principle" must be respected. Therefore, the User sending must be different from the User who last validated.

To send the Transmission of Data , the User must have the role of MS Managing Authority with Update rights (MSMAu).

The Sending will have to be electronically signed in accordance with Directive 1999/93/EC.

Remark

When on the highest MS node, different versions of the generated “Snapshot before send” document will be available so that the sender can first verify what will be send to the Commission:

• A version containing the untranslated content with the template in the Source language.

• When the Source language is different from English, a version containing the untranslated content with the template in English.

• When the Source language is different from English, a version containing a machine translation of the content in English with the template in English.

Remark

The Transmission of Data can only be revised by MS when a lower Node exists and the status is Sent (to a higher MS node), Open, Validated, Ready to Send or Review requested by MS.

This action can be used when a User wants to request a review for the Transmission of Data version sent by the Member State/Region because it is incomplete or incorrect.

To request a review for the Transmission of Data version, the User must have the role of MS Managing Authority with Update rights (MSMAu).

Remark

The Transmission of Data can only be deleted when:

• it resides on the owner Node

• the status is Open, Validated, Ready to Send or Review requested by MS

• it has never been sent to the Commission before

• it has no sent documents attached.

To delete the Transmission of Data , the User must have the role of Member State Managing Authority with Update access (MSMAu).

The delete is a physical delete and cannot be recovered!

Remark

The Transmission of Data can only be cancelled when a Transmission of Data version with documents was sent to the Commission and without any previous work version in status Review requested by EC. The notification utility will be called to notify the Commission of the cancel of the version.

The Transmission of Data version must currently reside on the User's Node and its status is Open, Validated, Ready to send or Review requested by MS and contains a sent Document and has no previous working version of the same major version in status Review requested by EC.

To cancel the Transmission of Data , the User must have the role of MS Managing Authority with Update rights (MSMAu).

Remark

A new version of the Transmission of Data needs to be created when on the last version of the submission period a review was requested by the Commission, or can be created when the Member State feels the need to send a reviewed version.

A new version of the Transmission of Data can only be created when the last working version for submission periods with indicator data (YYYY06, YYYY12) is in status Review requested by EC or when the last working version for submission periods without indicator data (YYYY03, YYYY08 and YYYY10) ) is in status Sent to the Commission.

To create a new version, the User must have the role of MS Managing Authority with Update rights (MSMAu).
